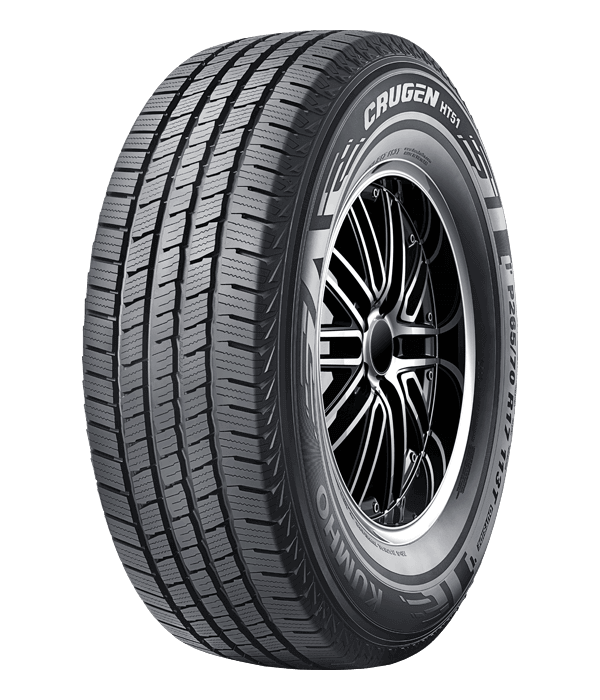

Product Name : HT51
Product Description

錦湖輪胎CRUGEN HT51 是一款輕型皮卡SUV全季節輪胎,因應行駛高速公路所設計,提供絕佳高速穩定操控以及良好排水性能。

Long tread life
Long tread life

Optimizing 4 Channel layout for better tread life

Improved hydro planning
Improved hydro planning

Wider zig-zag grooves for improved hydro planning Suggesting a image of turbulence

Snowy road performance
Snowy road performance

3D shape through better snowy road performance

Driving stability
Driving stability

Improved stiffness center rib
(Driving stability & better traction performance)

Product Introduction
耐磨指數720 濕地抓地力A 散熱指數A
規 格 荷重指數 速度級別規 格 荷重指數 速度級別
215/70 R15 98T 235/60 R17 102T
225/70 R15 100T 235/65 R17 104T
P 235/70 R15 102T P 235/70 R17 XL 108T
P 235/75 R15 105T 235/75 R17 109T
P 255/70 R15 108T 235/80 R17 120R
215/65 R16 XL 102T 245/65 R17 XL 111T
P 215/70 R16 99T 245/70 R17 110T
215/85 R16 115R 245/75 R17 121S
225/70 R16 103T 255/65 R17 110T
225/75 R16 110S 265/65 R17 112T
P 225/75 R16 104T P 265/70 R17 113T
235/60 R16 XL 104T 245/60 R18 105T
235/70 R16 106T P 255/70 R18 112T
P 235/75 R16 106T 265/60 R18 110T
235/85 R16 120R P 265/65 R18 112T
245/70 R16 XL 111T 265/70 R18 124R
245/75 R16 120S P 265/70 R18 114T
P 245/75 R16 109T P 275/65 R18 114T
255/70 R16 111T 275/70 R18 125R
265/70 R16 112T 245/55 R19 103T
265/75 R16 112S 265/50 R20 XL 111T
P 265/75 R16 114T P 275/55 R20 111T
P 275/70 R16 114T P 275/60 R20 114T
225/65 R17 102T
XL:Extra Load

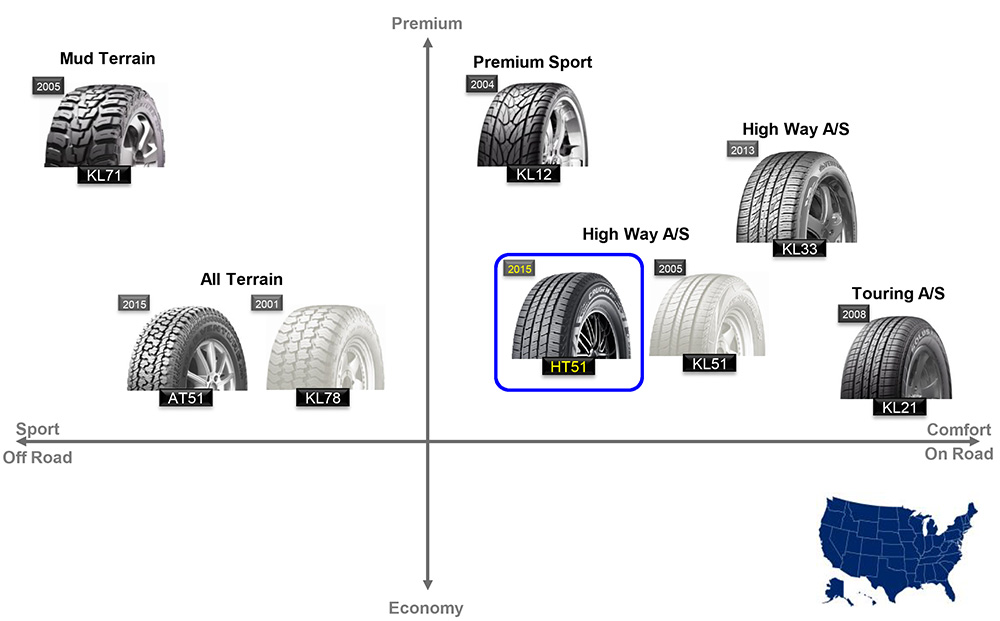

SUV/LTR Positioning Map
SUV/LTR Positioning Map

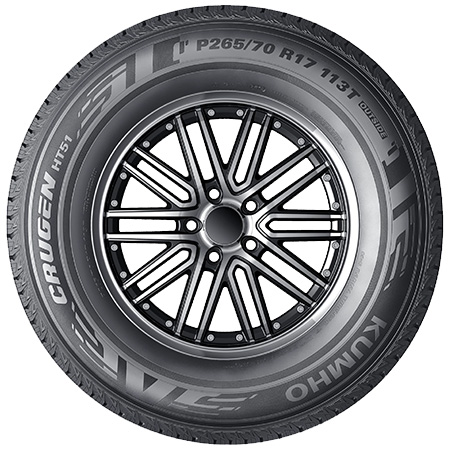

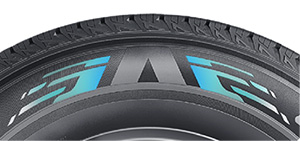

Sidewall Design
Sidewall Design

Design Motive

Sidewall Design

Design motive from an express highway,
Emphasize on high speed stability.
Harmonized Spreadable line & decoration

Sidewall Design

[CONCEPT KEYWORDS]
Stability, Spread, Straight

Tread Compound Technology

Premium Solution SBR

Special High Grip Resin

High Dispersible Micro Silica (HDMS)

Sidewall Design Sidewall Design Sidewall Design

Maximizing Tread life & Wet
performance for

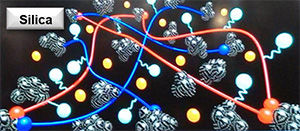

Multi-Functionalized S-SBR

Improving Dry & Wet Grip for

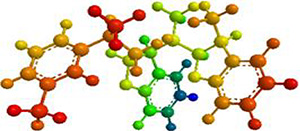

High Grip Resin

Optimizing Wear & Ground
contract area for

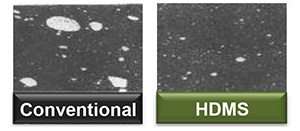

High Dispersible Micro Silica

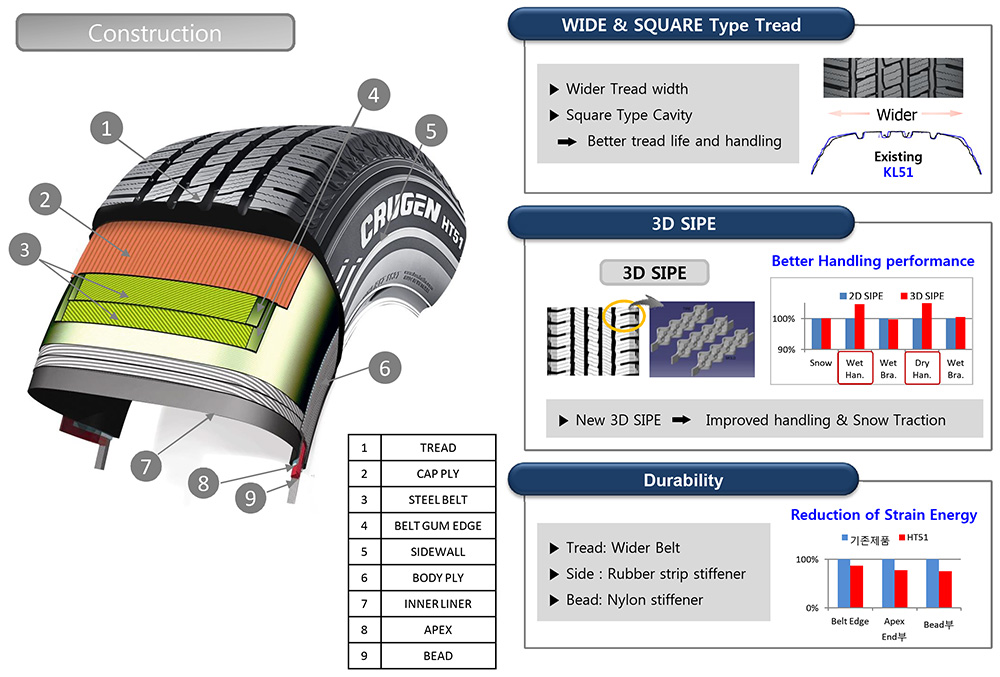

Tire Construction Technology
Tire Construction Technology

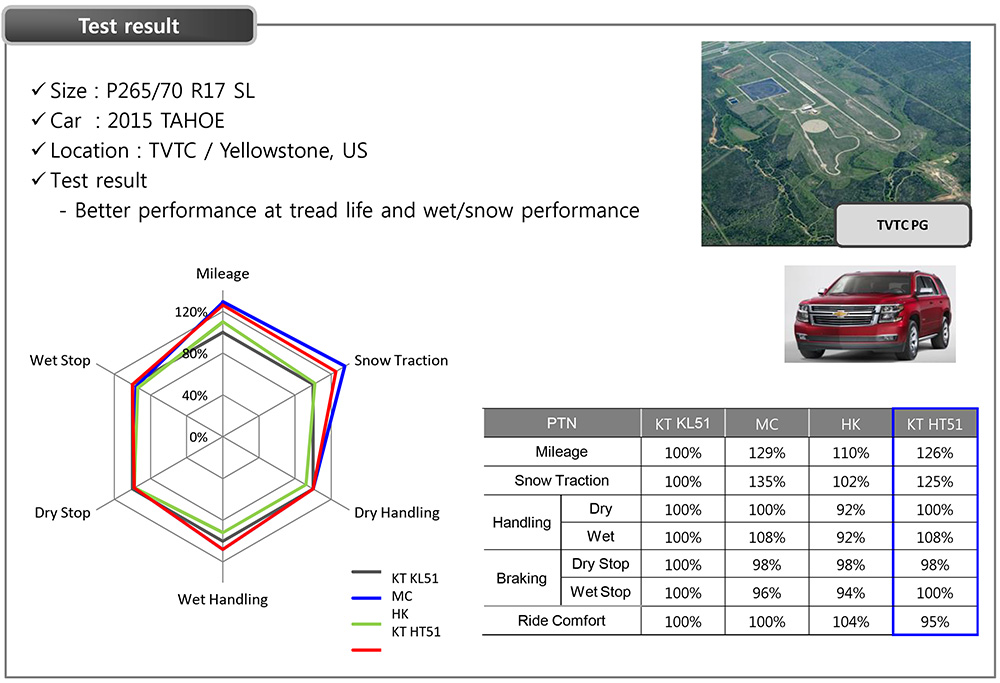

Performance Results
Performance Results
